Send InquiryFRP/GRP Spray Headers
Price 200 INR/ Piece
FRP/GRP Spray Headers Specification
- Tolerance
- 2 mm
- Diameter
- 50 mm to 400 mm
- Yield Strength
- 115 MPa
- Coating Type
- UV Resistant Resin Coating
- Tensile Strength
- 180 MPa
- Flexibility
- Rigid
- Connection Type
- Flange, Threaded, Socket
- Bend Radius
- Not Applicable (Rigid Pipe)
- Thread Type
- BSP / NPT
- Temperature Range
- -40C to 120C
- Sealing Type
- Gasket Seal / O-Ring
- Product Type
- Spray Header
- Material
- FRP/GRP (Fibre Reinforced Plastic/Glass Reinforced Plastic)
- Connection
- Flanged/Threaded/Coupling
- Shape
- Round/Pipe
- Standard
- ASTM / IS / BS
- Surface Treatment
- Smooth Resin Finish
- Outer Diameter
- 50 mm to 400 mm (customizable)
- Section Shape
- Cylindrical
- Length
- Up to 6 meters or as required
- Thickness
- 5 mm to 20 mm (customizable)
- Color
- Green, Blue, Grey, Custom
- Usage
- Water Spray Distribution
- Rated Pressure
- Up to 10 bar
- Application
- Cooling Towers, Industrial Water Treatment, Chemical Plants, Effluent Treatment Plants
- Material Grade
- Isophthalic / Vinyl Ester / Epoxy / Bisphenol
- Life Expectancy
- 20+ years under normal conditions
- Hydraulic Testing
- 100% Hydro Test at rated pressure
- Manufacturing Process
- Filament Wound / Hand Lay-up / Pultrusion
- UV Resistance
- High (suitable for outdoor installation)
- Internal Finish
- Smooth bore for minimal flow resistance
- Environmental Impact
- Eco-friendly and recyclable material
- Customization
- Available for size, color, and configuration
- Ends
- Plain, Flanged, Threaded as per client specification
- Corrosion Resistance
- Excellent against most acids and alkalis
- Weight
- Lightweight compared to steel headers
- Installation
- Easy to install, low maintenance
- Fire Retardancy
- Available with fire-retardant grades
- Electrical Conductivity
- Non-Conductive
- Compatibility
- Compatible with most standard pipe fittings & couplings
FRP/GRP Spray Headers Trade Information
- Minimum Order Quantity
- 10 Meter
- Main Export Market(s)
- Asia
- Main Domestic Market
- All India
About FRP/GRP Spray Headers

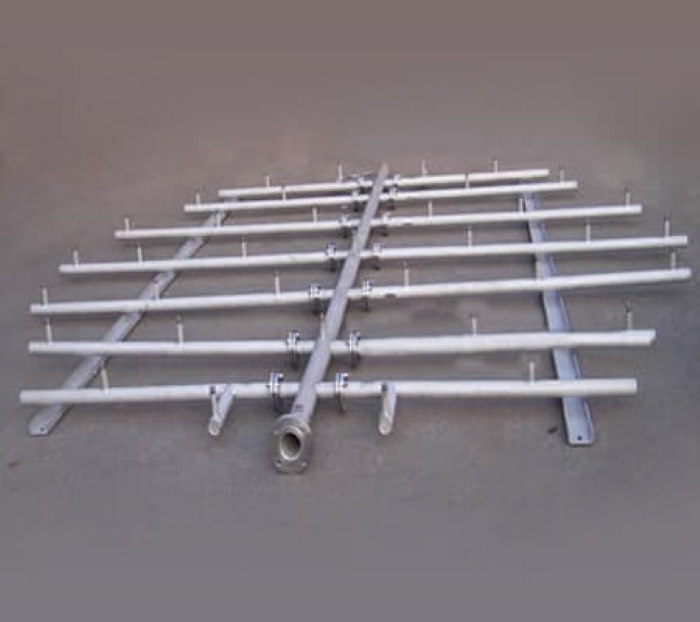

FRP (Fiberglass Reinforced Plastic) and GRP (Glass Reinforced Plastic) spray headers are specialized components used in piping systems for distributing liquidstypically in spray formacross a defined area. These headers are fabricated from composite materials, combining fiberglass reinforcements with a resin matrix (commonly polyester or epoxy), resulting in a lightweight, durable, and corrosion-resistant solution.
Spray headers made from FRP/GRP are widely used in applications such as gas scrubbing, cooling towers, water treatment, and chemical processing, where exposure to aggressive chemicals or moisture is common. Their non-metallic nature ensures excellent resistance to corrosion, erosion, and environmental degradation, significantly reducing maintenance needs and extending service life.
FRP/GRP spray headers are custom-designed with precise nozzle placement and pressure specifications to ensure uniform liquid distribution, high operational efficiency, and reliable performance in harsh industrial environments.
Reliable Corrosion Resistance
Our FRP/GRP Spray Headers demonstrate outstanding resistance to most acids and alkalis, making them ideal for harsh chemical, industrial, or water treatment environments. Unlike conventional steel, the non-metallic construction prevents rust and chemical degradation, ensuring continuous and reliable operation even in the most demanding settings.
Effortless Installation and Durability
With their lightweight build and plain, flanged, or threaded ends, these headers are easy to handle and install, reducing labor costs and downtime. Their smooth internal bore minimizes flow resistance, while the tough resin surface finish and UV-resistant coating protect against outdoor elements, guaranteeing a lifespan of over 20 years under normal conditions.
FAQ's of FRP/GRP Spray Headers:
Q: How are FRP/GRP Spray Headers installed and maintained?
A: These headers are designed for ease of installation with lightweight construction and a choice of plain, flanged, or threaded ends compatible with most standard pipe fittings and couplings. Minimal maintenance is required due to their high corrosion and UV resistance.Q: What applications are suitable for FRP/GRP Spray Headers?
A: They are commonly used in cooling towers, industrial water treatment, chemical plants, and effluent treatment plants where resistance to chemicals, corrosion, and outdoor exposure is essential.Q: When should I opt for fire-retardant FRP/GRP headers?
A: Choose fire-retardant grades in environments where elevated fire safety standards are demanded, such as facilities handling flammable or high-temperature substances.Q: Where can these spray headers be installed?
A: Their robust UV and chemical resistance make them suitable for both indoor and outdoor installations, especially where exposure to weather, chemicals, or corrosive environments is expected.Q: What manufacturing processes are used for these headers?
A: They are made using advanced filament winding, hand lay-up, or pultrusion techniques, tailored to meet precise specifications in terms of size, thickness, and performance.Q: How does the lightweight design benefit my project?
A: Being lighter than steel, these headers are easier to transport and install, reduce load on supporting structures, and lower installation costs without compromising strength or performance.
