FRP & Thermoplastic lined FRP Pipes & Fittings

About FRP & Thermoplastic lined FRP Pipes & Fittings

FRP (Fiberglass Reinforced Plastic) pipes and fittings are advanced composite materials designed for high-performance piping systems. Made from a combination of glass fibers and thermosetting resins (such as polyester, vinyl ester, or epoxy), FRP pipes offer exceptional resistance to corrosion, high strength-to-weight ratio, and durability. These pipes and fittings are widely used in industries such as chemical processing, water treatment, oil and gas, and power generation, where traditional materials like steel or copper may degrade due to exposure to harsh chemicals or environmental conditions.

1. Corrosion Resistance: FRP pipes offer superior protection against chemical corrosion, including resistance to acids, alkalis, solvents, and seawater.

2. Lightweight: These pipes are much lighter than metal counterparts, leading to lower transportation and installation costs.

3. Durability: FRP materials are designed to last longer and require minimal maintenance, even in harsh environments.

4. Cost-Effective: Over time, FRP systems can be more cost-effective due to lower installation and maintenance costs.

However, in some applications where there are particularly aggressive chemicals or high temperatures, thermoplastic-lined FRP pipes and fittings offer additional protection. These systems combine the structural strength of FRP with the chemical resistance of thermoplastic materials.

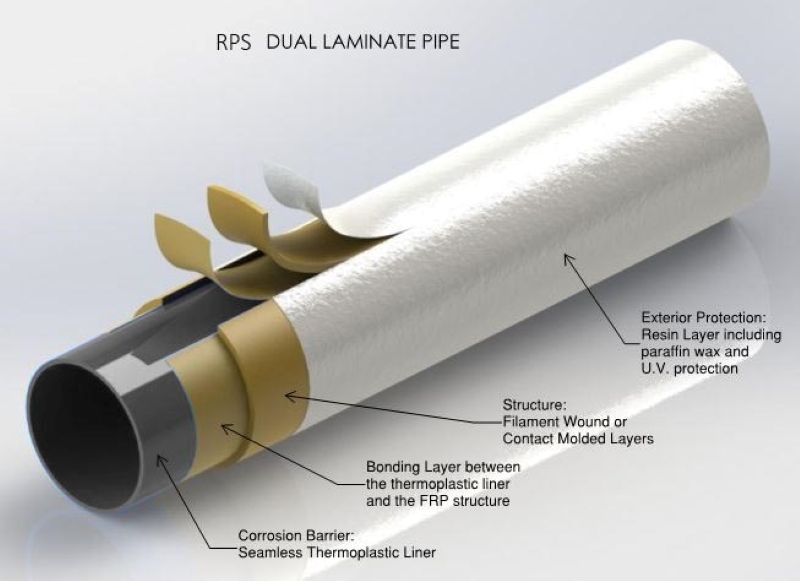

Thermoplastic-lined FRP pipes and fittings feature an inner lining made from corrosion-resistant thermoplastics such as Polypropylene (PP), Polyvinyl Chloride (PVC), Polyvinylidene Fluoride (PVDF), or PTFE (Teflon). The thermoplastic liner ensures that the system remains impermeable to aggressive chemicals, while the FRP exterior provides the necessary strength and resilience.

1. Enhanced Chemical Resistance: The thermoplastic lining offers superior resistance to aggressive chemicals, making these pipes ideal for transporting hazardous fluids.

2. Temperature Tolerance: Certain thermoplastic linings offer excellent resistance to high temperatures, ensuring reliable performance in challenging conditions.

3. Durability: The combination of FRP's mechanical strength and thermoplastics™ chemical resistance extends the lifespan of the piping system.

4. Leak-Free: These systems are designed to be completely leak-proof, ensuring safety and compliance with environmental standards.

• Chemical Processing: For transporting chemicals, acids, and other reactive substances.

• Water Treatment: Particularly in desalination plants and wastewater treatment facilities.

• Oil & Gas: In pipelines and facilities where chemicals, oils, or gases need to be transported safely.

• Food & Beverage: For applications requiring sanitary and corrosion-resistant piping.

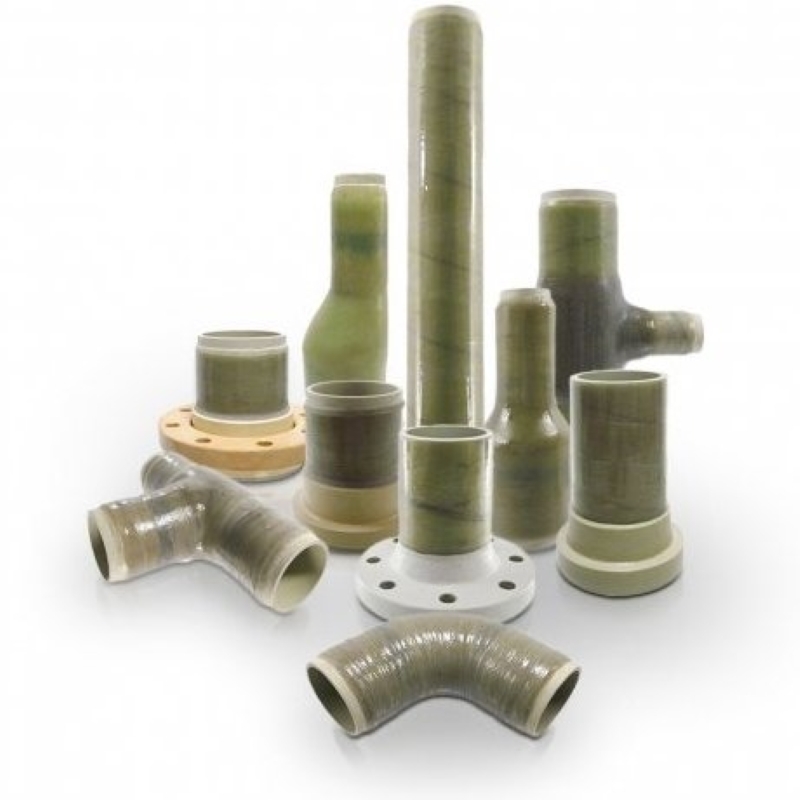

Fittings such as elbows, tees, reducers, flanges, and couplings are essential for the smooth operation of these piping systems. Manufactured from the same materials (FRP and thermoplastic), these fittings ensure that the piping system remains integrated and leak-free.
